Valve Gallery -
Frequency Converters (1) Valves:
41-MPG, FC4, TX21, MX40.

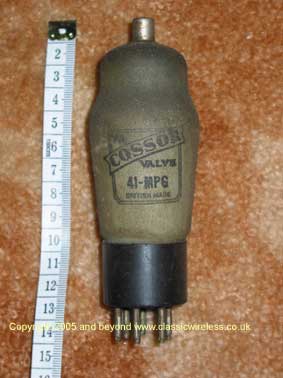

| Shown above is a Cossor 41-MPG frequency
converter. Utilising a B7 base this is a heptode with 4v heater
approx 140mm height |
|

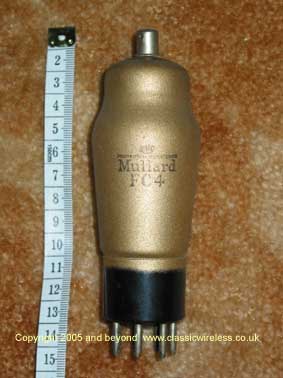

Shown above is a Mullard FC4 frequency
converter. This is an octode utilising a B7 base and 4v heater
approx 146mm height |

| Shown above is a Tungsram TX21 frequency
converter. Utilising a B7 base this is a triode/hexode with 21v
heater approx 152mm height |
|
Shown above is a Marconi MX40 frequency
converter. Less commonly utilising an unmetallised glass envelope of
150mm height. Again using a B7 base and is an heptode |
Continue to next
Frequency Converter gallery page
